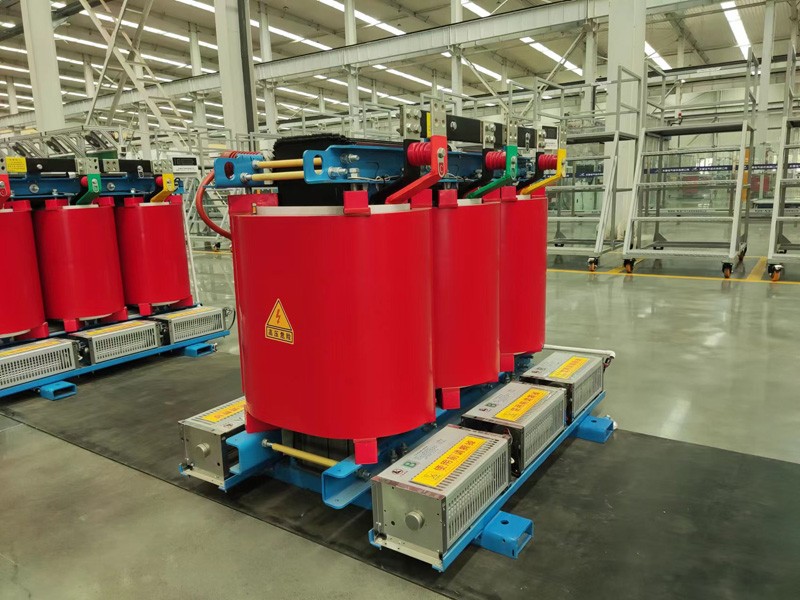

China 11kV 33kV dry type cast resin transformer is manufactured with high quality and long service life by DONGFU Electric. DONGFU Electric dry-type cast resin transformers include different voltage levels and power ratings. The low flammability feature makes the dry type transformer an ideal solution for hospitals, residence community, business center, shopping centers, and high-occupancy buildings. It also has features like easy to install, four times stronger, proper working, superior finish.

DONGFU Electric 11kV 33kV dry type transformer:

• Dry      type cast resin transformers

• Rated      voltage from 11kV up to 36 kV

• Rated      power from 25 kVA up to 5 MVA

• Air      cooling system

• Thermal      classes F & H

• Indoor      and outdoor application

Technical of DONGFU Electric Dry Transformer Advantages

1.High reliability: using advanced technology, high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, and a service life of 30 years.

2.Zero pollution operation and maintenance: Using epoxy resin cast insulation material to meet high fire and explosion requirements, especially suitable for densely populated or enclosed spaces; Oil-free cooling system, eliminating the risk of oil leakage, in line with environmental protection certification; Fully sealed structure to achieve maintenance-free design, the whole life cycle operation and maintenance costs reduced by 60% +.

3.Wide voltage range adaptation: Support 6.6kV to 35kV medium and high voltage grid access, covering industrial and commercial power distribution, rail transit, new energy grid connection and other scenarios.

4.Efficient heat dissipation and weather resistance: Natural air cooling (AN) or forced air cooling (AF) mode, combined with IP23 and above protection level, can withstand -40 ° C to + 120 ° C extreme environment, humid, dusty, corrosive gas environment can still operate stably.

Technical Data Sheet
