Brand Name: DONGFU Electric
Voltage: 11/30/33 kV
DONGFU Electric Drop-out Fuse Cutout and load switching fuse cutout are outdoor high voltage protective device. DONGFU Electric’s Drop-out Fuse Cutout sell well all over the world, including Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa and so on.

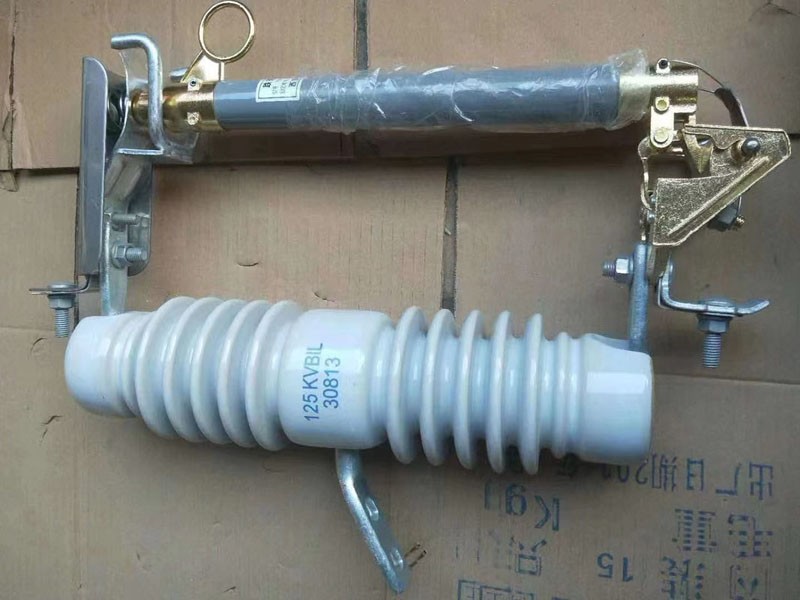

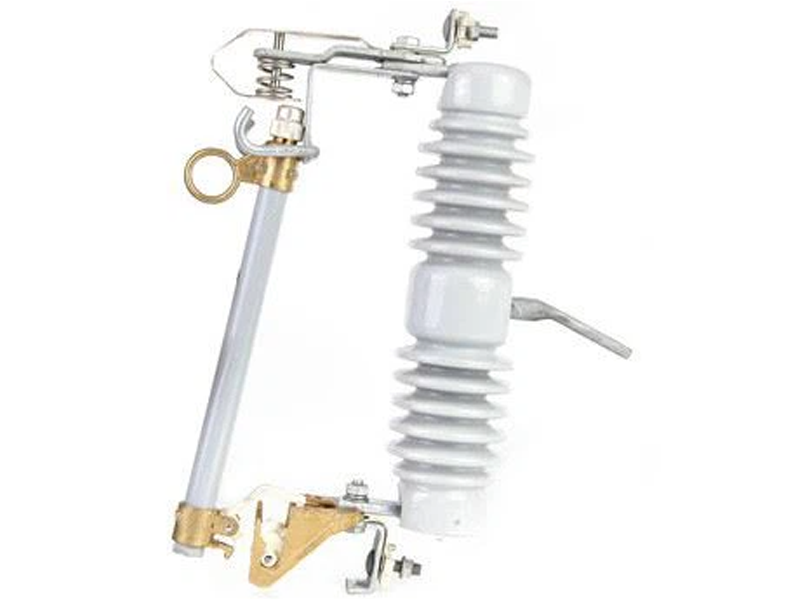

Drop-out Fuse Cutout
The Drop-out fuse cutout and load switching fuse cutout are outdoor high voltage protective device. To be connect incoming feeder of distribution transformer or distribution lines, it mainly protects transformer or lines from short circuit and overload, and on/off loading current, Drop-out fuse cutout is composed of insulator supports and fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube is composed of inside arc extinguishing tube, outer phenolic compound paper tube or epoxy glass tube load switching fuse cutout provides enforced plastic auxiliary contacts and arc extinguishing enclosure for switching on/off loading current.
Technical Data Sheet
Product Specifications: | |||
Item NO | RW12 | Place of origin | China |
Performance | fuses | material | Metal /silicon rubber /ceramic |
Quality | 100% test | size | 0.1cbm |
Supply mode | Factory direct supply | MOQ | 3pes |
Supply ability | 100000pcs | Delivery time | 20days |
Certification | CE ISO TEST REPORT | packing | Carton box |
Main Technical Parameter: | |||||||
Type | Rated voltage (KV） | Rated current(A) | Impulse voltage BIL(KV) | Power-frequency withstand voltage | Leakage distance(MM) | Weight (KG） | Dimensions(CM) |
JSDR-1 | 11 | 100 | 110 | 40 | 250 | 7.3 | 38.5x34x11 |
JSDR-1 | 11 | 200 | 110 | 40 | 250 | 7.3 | 38.5x34x11 |
JSDR-1 | 15 | 100 | 125 | 45 | 320 | 8.5 | 40x34x11 |
JSDR-1 | 15 | 200 | 125 | 45 | 320 | 8.5 | 40x34x11 |
JSDR-1 | 24 | 100 | 150 | 65 | 530 | 12 | 48x34x15 |
JSDR-1 | 24 | 200 | 150 | 65 | 530 | 12 | 48x34x15 |
JSDR-1 | 33 | 100 | 170 | 70 | 720 | 15 | 68x37x15 |
JSDR-1 | 33 | 200 | 170 | 70 | 720 | 15 | 68x37x15 |
Type | Rated voltage (KV) | Rated current （A) | Breaking current （A) | Impulse voltage BILKV) | Power-frequency withstand voltage | Leakage distance (MM) | Weight (KG） | Dimensions(CM) |
JSDR-2 | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5x34x11 |
JSDR-2 | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | 38.5x34x11 |
JSDR-2 | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40x34x11 |
JSDR-2 | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | 40x34x11 |
JSDR-2 | 24 | 100 | 8000 | 150 | 65 | 530 | 12 | 48x34x15 |
JSDR-2 | 24 | 200 | 10000 | 150 | 65 | 530 | 12 | 48x34x15 |
JSDR-2 | 33 | 100 | 10000 | 170 | 70 | 720 | 15 | 68x37x15 |
JSDR-2 | 33 | 200 | 12500 | 170 | 70 | 720 | 15 | 68x37x15 |
Type | Rated voltage (KV) | Rated current （A) | Breaking current (A) | Impulse voltage BIL (kv) | Power-frequency withstand voltage | Leline distance (MM) | Weight (KG) | Dimensions (CM) |
JSDR-3 | 12 | 100 | 6300 | 110 | 40 | 250 | 7.3 | 38.5x34x11 |
JSDR-3 | 12 | 200 | 8000 | 110 | 40 | 250 | 7.3 | 38.5x34x11 |
JSDR-3 | 15 | 100 | 8000 | 125 | 45 | 320 | 8.5 | 40x34x11 |
JSDR-3 | 15 | 200 | 10000 | 125 | 45 | 320 | 8.5 | 40x34x11 |
JSDR-3 | 24 | 100 | 8000 | 150 | 65 | 530 | 12 | 48x34x15 |
JSDR-3 | 24 | 200 | 10000 | 150 | 65 | 530 | 12 | 48x34x15 |
JSDR-3 | 33 | 100 | 10000 | 170 | 70 | 720 | 15 | 68x37x15 |
JSDR-3 | 33 | 200 | 12500 |
