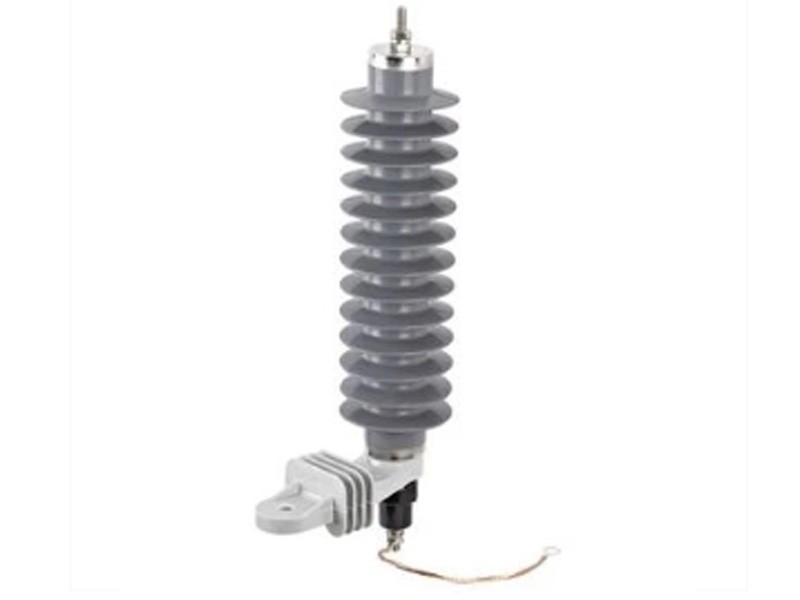

Polymer Type Lightning Arrester

Brand Name: DONGFU Electric
Voltage: 6.6-35 kV
The lightning arrester is also called overvoltage protector. Polymer type lightning arrester is connected in parallel with the protected electrical equipment. DONGFU polymer Type Lightning Arrester sell well all over the world, including Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa and so on.

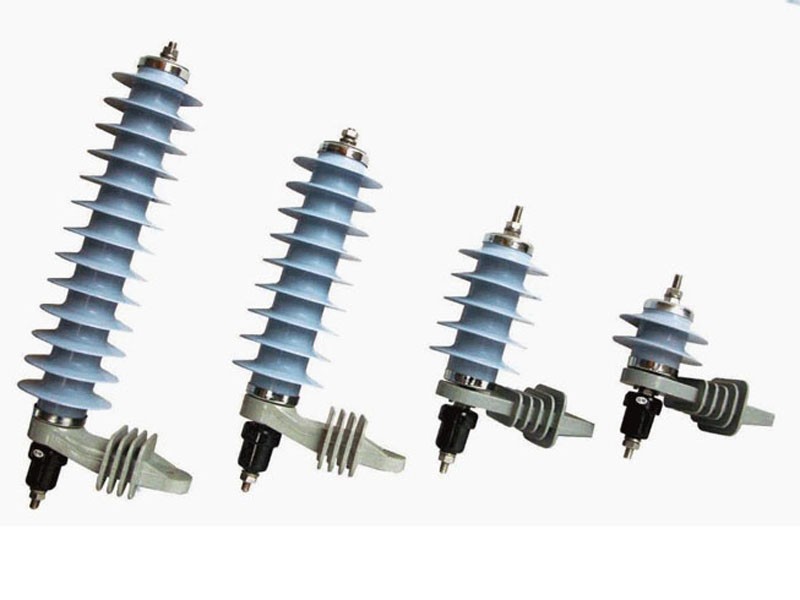

Polymer Type Lightning Arrester

The lightning arrester is also called overvoltage protector. Polymer type lightning arrester is connected in parallel with the protected electrical equipment. It can limit various overvoltage on electrical equipment, such as lightning overvoltage, operating overvoltage, etc., so as to protect the high voltage electrical from the damage of overvoltage.

Metal-oxide varistor is used as the core component of surge arrester. The conductive mechanism of varistors is based on the non-linear volt-ampere characteristics of Schottky barrier model. The arrester is based on the principle of the non-linear volt-ampere characteristic of metal oxide varistor, which makes the arrester hold high resistance under the normal operating voltage of power system, which is equivalent to an insulator, and will not interfere with the normal operation of power system. When the overvoltage of power system endangers the safe operation of the system, the varistor triggers instantaneously and presents a low resistance. Forming a channel, release overvoltage energy, and clamp system overvoltage within the allowable range of the system to ensure the safe operation of the power system.

The Polymer type lightning arrester has the advantages of high current impulse withstand capacity, large protection margin, strong anti-fouling ability, small size, light weight and convenient installation.

Product Characteristic：

1. Small size, Light weight, resistance to impact, no collision damage during transportation, flexible installation, suitable for use in the switch cabin.

2. Special structure, the overall compression molding, no air gap, good sealing performance, moisture-proof and explosion-proof

3. Large creepage distance, good hydrophobicity, strong stain resistance, stable performance and reduce operation maintenance.

4. Unique formula of zinc oxide varistor, small leakage current, slow aging, long service life.

5. With DC reference voltage, rectangular flow capacity and high current and large current withstand capacity are higher than standard requirement.

Technical Data Sheet

Product Specifications:
Item NO	HY5WS	Place of origin	China
Performance	Protect the circuit	material	Metal /Plastic
quality	100%test	size	0.1cbm
Supply mode	Factory direct supply	MOQ	3pcs
Supply ability	10000pcs	Delivery time	20days
certification	CE ROHS ISO test repot	packing	Carton box

Main Technical Parameter:
Type	Rated voltage( KV)	MCOV(KV)	Steep current impulse	Switching current impulse	Lighting current impulse	2000us square wave impulse current withstand	4/10us high current impulse
HY10W-3	3	2.55	9.5	7.7	9	1	100
HY10W-6	6	5.1	19.0	15.4	18	1	100
HY10W-9	9	7.65	28.5	23.1	27	1	100
HY10W-12	12	10.2	38.0	30.8	36	1	100
HY10W-15	15	12.7	47.5	38.5	45	1	100
HY10W-18	18	15.3	57.0	46.2	54	1	100
HY10W-21	21	17.0	66.5	53.9	63	1	100
HY10W-24	24	19.2	76.5	61.6	72	1	100
HY10W-27	27	21.9	85.5	69.3	81	1	100
HY10W-30	30	24.4	95.0	76.5	90	1	100
HY10W-33	33	26.8	104.5	84.7	99	1	100
HY10W-36	36	29	114.0	91.4	108	1	100
HY10W-42	42	34.1	133.0	100.1	126	1	100
HY10W-48	48	39	152.0	126.0	150	1	100
HY10W-54	54	43	171.0	139.0	162	1	100
HY10W-60	60	48	208.0	160.0	180	1	100
HY10W-66	66	52.8	230.0	172.0	198	1	100

Our Advantage:

1. We have been engaged in fuse for more than 15 years.

2. We have experienced engineers and professional QC to ensure your product better.

3. Our company with strong strength, reasonable price, good service and a number of enterprises to establish a long-term partnership.

FAQ：

Q: How your quality guarantee?
A: We have 100% quality guarantee to customers. We will be responsible for any quality problem.

Q: How many different types of products your company manufactures?

A: Now we have more than 100 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
