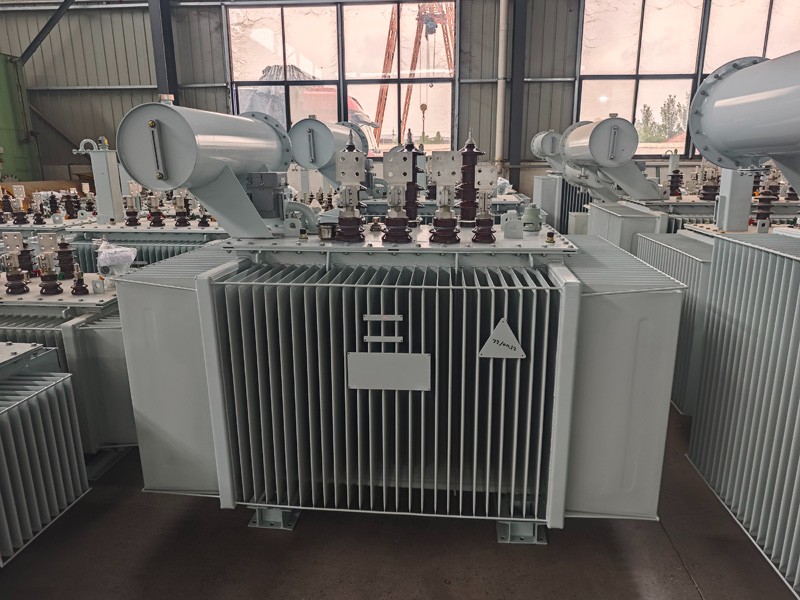

TRANSFORMER 1500KVA 22KV/0.4KV are installed in MV / LV substations. These H59 oil immersed transformers have a place in different fields: urban and rural power distribution, tertiary industry, utilities, industry, renewable energy, etc.

Features of TRANSFORMER 1500KVA 22KV/0.4KV

Basic equipment:

•3 HTA insertion sleeves

•4 LV porcelain sleeves

•3 position power switch

•Fill holes

•2 lifting rings

•2 ground positions

•Nameplate, warranty

•1 dial thermometer

•1 oil level indicator

•4 orientable rollers.

Optional equipment:

•3 plug-in bushings, straight or angled moving parts, corresponding to fixed parts. in

In this case, the characteristics (nature, cross-section, insulation diameter) of the cable must be specified

•3 porcelain MV crossing

•4 LV bushing type Bar Pass

•1 locking system for plug-in bushings and switches, no locking provided

•1 sealable protective cover on LV bushing (only in case of plug-in MV cross)

•Protection and control equipment: thermostat, multi-function protective relay (DGPT2 or DMCR).

The color of the tank:

•Cement gray RAL 7033.

General characteristics:

Standards and specifications:

•IEC 60076

Explanation:

•Fully-filled sealed three-phase distribution transformer immersed in ONAN natural cooling mineral oil

•Special corrosion protection of storage tanks.

Types:

•Indoor or outdoor

•Oil / gas immersion

•Breathable type, preservatives can be added as required.

Frequency:

•50 Hz

•60 Hz: Contact us.

Operating Voltage:

22/0.4 KV

Shutdown settings:

•Standard range: ± 5% on MV, through adjustable switch without voltage

•Other setting ranges are available on request.

Technical Data Sheet
