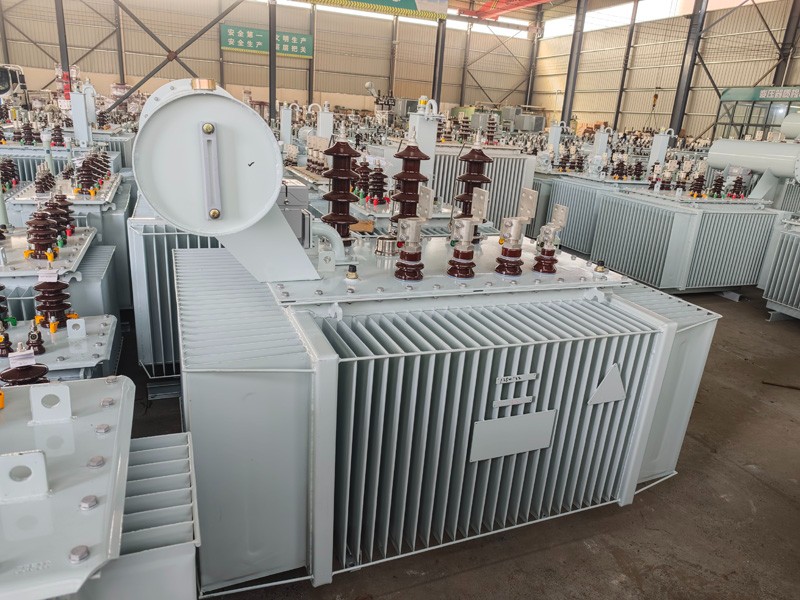

TRANSFORMER 2500KVA 22KV/0.4KV

Brand Name: DONGFU
Voltage: 22KV/0.4KV
Capacity: 2500 KVA
Price: 18358 USD/pc
TRANSFORMER 2500KVA 22KV/0.4KV with IEC 60076 standards, it is manufactured by DONGFU Electric. DONGFU Electric is a professional Manufacturers & Suppliers of oil immersed distribution transformer in China. The performance of its oil immersed transformer is according with IEC60076,GB1094, GB/T6451. It sells very well in Cambodia.

Constitution of TRANSFORMER 2500KVA 22KV/0.4KV:
• 3 HTA porcelain roads
• 4 LV porcelain crossings
• shut down
• Reducing valve
• Fill holes
• Standard hooks on the back
• Eyebolt
• The bracket is welded to the bottom of the water tank
• 2 grounded sockets
• Nameplate, warranty sheet.

The color of the tank:
• Cement gray RAL 7033.

Standards and specifications:

• IEC 60076 (publications 1-2-3-4 and 5)
• D60-P60 ONEE-electricity sector.

Power range:
• 2500 KVA.

Explanation:
• Hermetic transformer immersed in oil
• Full ONAN type natural cooling
• Outdoor installation.

Frequency:

• 50 Hz

Shutdown settings:

• 5-position switch on medium voltage winding: ± 2×2.5%
• Other settings are available on request.

Technical Data Sheet

*Rated Capacity* （*KVA*）	2500
*H.V*	22 kV
*L.V*	400 V
*H.V Currrent (A)*	65.61
*L.V Current (A)*	3608.44
*Winding Material*	Copper to Copper
*Frequency*	50HZ
*Vector Group*	Dyn11
*Phase*	3 phase
*Type*	Oil-immersed
*Oil*	Mineral oil
*Core*	Silicon steel sheet
*Tapping Changer*	±2*2.5%
*Cooling Type*	ONAN
*Insulation Class*	A
*Oil level thermometer*	Equipped
*Oil level indicator*	Equipped
*Pressure relief device*	Equipped
*Lift lug*	Equipped
*Hanger*	Equipped
*Name plate*	Equipped
*Oil filling & drain valves*	Equipped
*Earthing terminals*	Equipped
*Standards*	IEC 60076
*Warranty*	1 year
*Service Lifetime*	15-20 years
